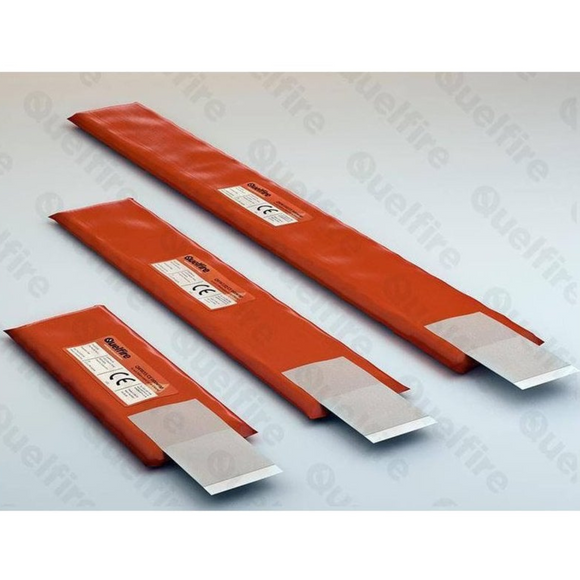

The Quelfire QWW Intuwrap is a CE Marked fire-stopping wrap designed for sealing plastic pipe penetrations through fire-rated walls and floors. Manufactured with high-performance graphite-based intumescent material inside a robust polythene sleeve, the Intuwrap expands rapidly when exposed to heat, crushing and sealing the softened pipe to prevent the spread of fire and smoke between compartments.
Designed for PVC, PVC-U, PE, HDPE, MDPE, and PP pipes ranging from 32mm to 160mm, each wrap features a self-adhesive tab for quick, secure fitting without mechanical fixings. The product can be easily retrofitted and is suitable for internal and external applications due to its Type X Durability, meaning performance is unaffected by weathering.
Key Features
-
CE Marked and fully tested to BS EN 1366-3:2009
-
Classified to EN 13501-2:2007 + A1:2009
-
Provides up to 4 hours fire resistance
-
For pipe sizes from 32mm to 160mm diameter
-
Suitable for PVC, PVC-U, PE, HDPE, MDPE, and PP
-
Fast installation with self-adhesive fixing—no tools required
-
Can be installed in both walls and floors
-
Type X durability—weathering has no effect on performance
-
Compact, flexible, and easy to retrofit
-
Forms a secure, fire-resistant insulation plug during fire
Specifications
-
Product Code: QWW
-
Compatibility: PVC, PVC-U, PE, HDPE, MDPE, PP
-
Pipe Sizes: 32mm to 160mm
-
Fire Rating: Up to 240 minutes (4 hours)
-
Certification: CE Marked, EN 13501-2:2007 + A1:2009, BS EN 1366-3:2009
-
Durability: Type X – suitable for exposure to weathering
-
Installation Type: Self-adhesive wrap, no mechanical fixings required
-
Application Areas: Rigid walls, flexible walls, floors
Installation Notes
-
Ensure surface is clean and free from debris
-
Wrap tightly around the pipe with the self-adhesive tab
-
Position in accordance with test evidence (consult Quelfire if unsure)
-
May be installed around existing pipework for retrofit solutions
-

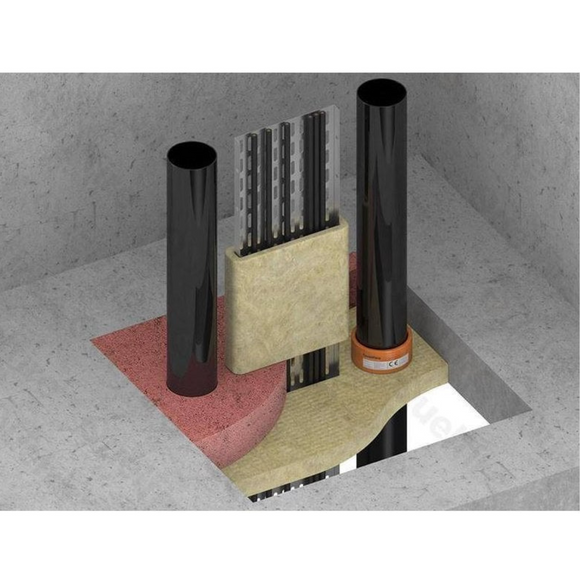

Suitable for use in conjunction with fire batt systems
