The Quelfire QRS Intumescent Fire Sleeves are CE Marked passive fire protection products designed to reinstate fire resistance where plastic pipes or ducts pass through fire compartment walls. These sleeves are suitable for both plasterboard partitions and masonry walls, and can be easily retrofitted without the need for mechanical fixings.

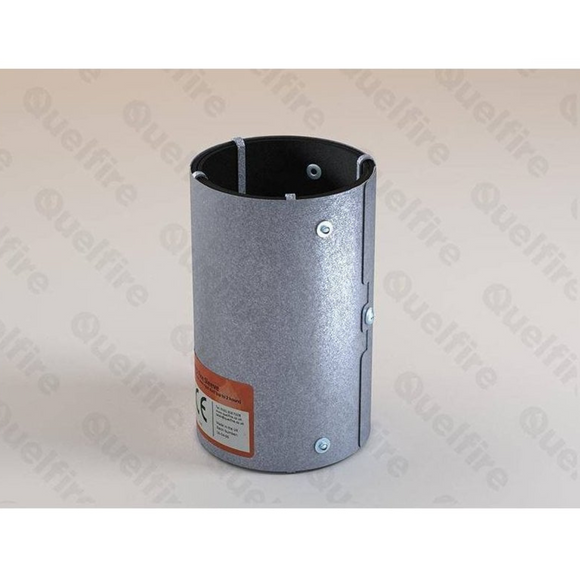

Each QRS sleeve consists of a flexible galvanised steel shell lined with high-performance graphite-based intumescent material. In the event of a fire, the sleeve expands to crush and seal the softened plastic service, preventing the passage of flames, smoke, and gases.
Key Features
-
CE Marked and tested to BS EN 1366-3:2009
-
Classified to EN 13501-2:2007 + A1:2009
-
Provides up to 2 hours fire resistance
-
For use with plastic ducts and pipes
-

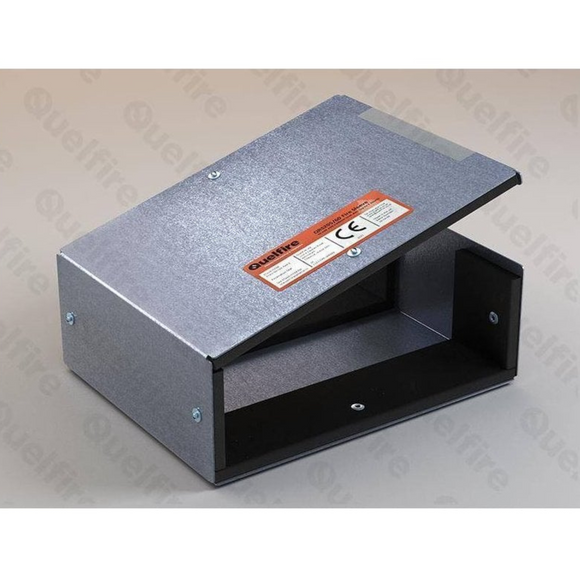

Available in both circular and rectangular sizes
-
Suitable for installation in rigid or flexible partitions
-
Tested in uncapped/uncapped duct configurations
-
No mechanical fixings required
-
Can be installed in conjunction with QuelStop Fire Batts
-
Type X Durability – performance unaffected by weathering
-
Ideal for retrofit applications
-
Expected lifespan: life of the building
Available Sizes and Fire Ratings
| Product Code | Duct Size | Aperture (mm) | Fire Rating | Notes |
|---|---|---|---|---|
| QRS110/54 | 110 x 54 mm | 135 x 78 mm | 120 mins | CE Marked |
| QRS205/60 | 205 x 60 mm | 230 x 85 mm | 120 mins | CE Marked |
| QRS220/90 | 220 x 90 mm | 262 x 132 mm | 120 mins | CE Marked |
| QRS75 | Ø 75 mm | Ø 90 mm | 120 mins | CE Marked |
| QRS90* | Ø 90 mm | Ø 116 mm | 120 mins | Not CE Marked |
| QRS110* | Ø 100 mm | Ø 135 mm | 120 mins | Not CE Marked |
| QRS130* | Ø 125 mm | Ø 170 mm | 90 mins | Not CE Marked |
| QRS110/54 Slim | 110 x 54 mm | 135 x 78 mm | 120 mins | Slim variant |
| QRS205/24 Slim | 205 x 24 mm | 230 x 48 mm | 90 mins | Slim variant |
| QRS220/90 Slim | 220 x 90 mm | 262 x 132 mm | 60 mins | Slim variant |
Variants marked with an asterisk () are not currently CE marked.
Installation Guidance
-

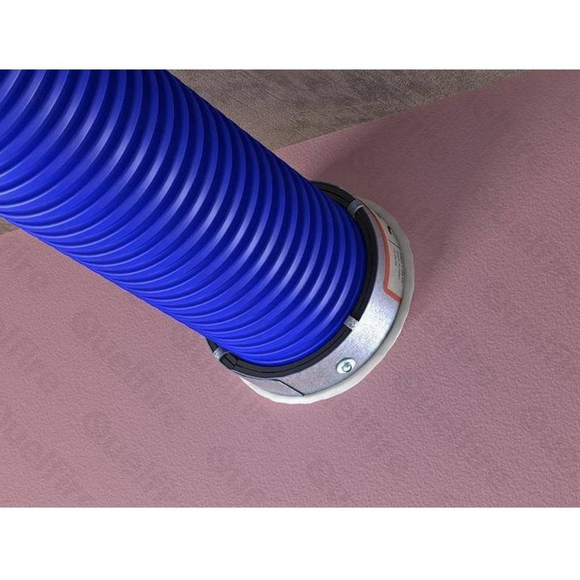

Wrap sleeve around the duct using the sticky tab or integrated screw
-

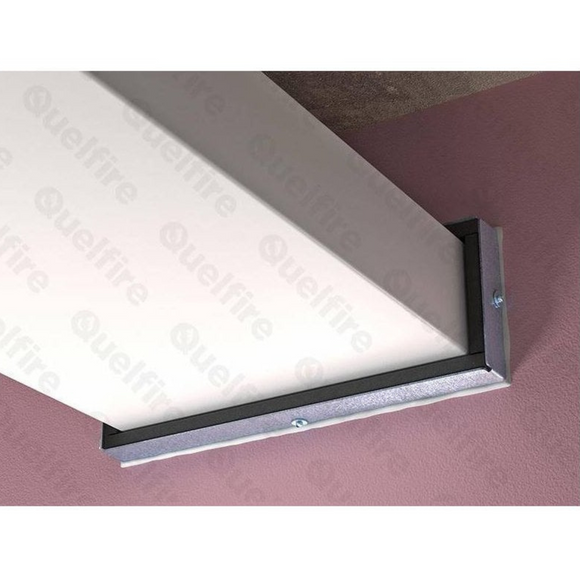

Position centrally within the partition, flush or slightly protruding
-
Cut surrounding plasterboard tightly and seal edges with QuelStop Intumescent Acrylic Sealant
-
No screws or fasteners required for fixing
-
Can be used in conjunction with QuelStop Fire Batt if needed
Certifications
-
CE Certificate No: 1121-CPR-JA5102
-
ETA Number: ETA 16/0554
-
Tested by Warringtonfire
-
Assessed under System 1 AVCP as per the Construction Products Regulation
