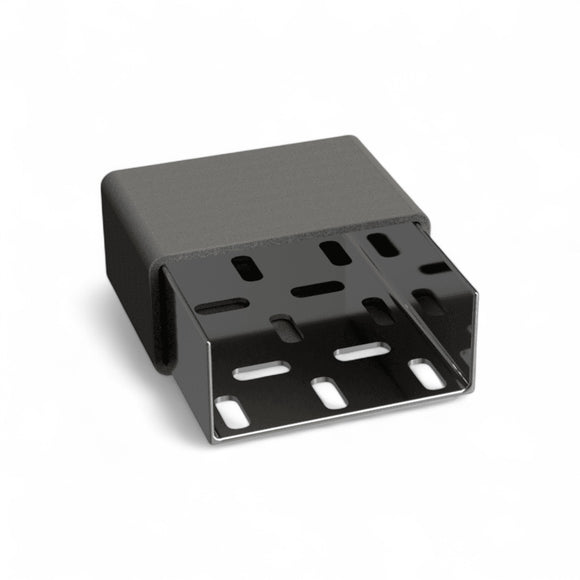

The FirePro Plus Universal Fire Sleeve for Metal Cable Trays is a flexible, low-profile intumescent wrap designed to provide 120 minutes fire protection for cable tray penetrations through walls and floors — without the need for metal sleeves or mechanical fixings.
With a nominal thickness of just 4.4mm, this sleeve is perfect for uninsulated or insulated stud partitions, solid walls, and floor slabs. In a fire, the intumescent expands rapidly to close the opening left by the failing cable tray, maintaining the fire integrity of the structure.
Tested capped and uncapped to BS EN 1363-1: 1999 and the principles of BS EN 1366-3: 2009, the FirePro sleeve delivers proven compliance and reliable performance for commercial and residential installations.
Key Benefits:
-
120 minutes fire integrity – tested capped and uncapped
-
BS EN 1363-1: 1999 and BS EN 1366-3: 2009 compliant
-
Ultra-slim 4.4mm nominal thickness – ideal for tight spaces
-
No metal sleeve or mechanical fixings required
-
Quick installation with self-adhesive fastening
-
Suitable for metal cable trays in stud walls, solid walls, and floors
-
Works with both insulated and uninsulated partitions
-
Maintenance-free fire protection
Installation Steps:
-
Wrap the sleeve tightly around the cable tray.
-
Secure with the self-adhesive tab.
-
For stud partitions, slide the sleeve so it is flush with or passes through both sides of the wall.
-
Ensure the sleeve is positioned exactly where the cable tray penetrates the fire-rated structure.
