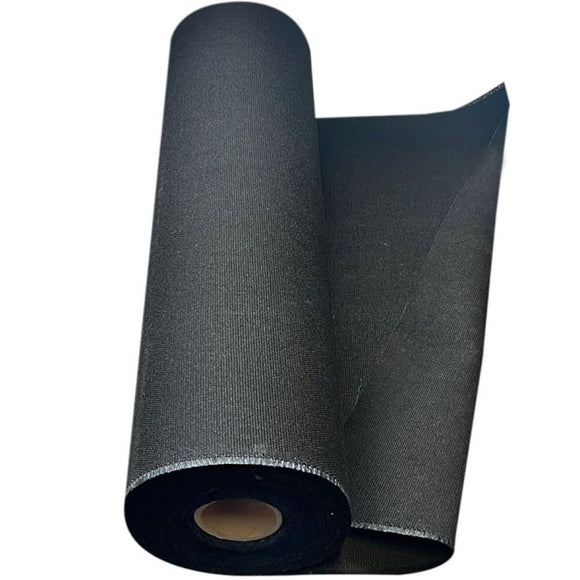

A graphite/silicone treated E-glass cloth offering improved temperature resistance and flexing performance over untreated cloth. The base fabric withstands 600°C unstressed, with a melting point above 800°C. Glass fibre is inherently non-flammable and the finished product is non-combustible. Supplied in black, 1000mm wide rolls of 25m as standard (1500mm also available).
Key specifications:
• Weight: 1100g/m2 (±5%)
• Thickness: 1.3mm (±5%)
• Width: 1000mm, also available in 1500mm (±5%), roll length: 25m
• Maximum operating temperature: 600°C (unstressed); melting point >800°C
• Tensile strength: 4500 N/5cm warp, 2600 N/5cm weft (±10%)
• Colour: Black fibres, both sides
Full technical data sheet and fire safety summary available to download below. Values above are guides. For critical applications we recommend independent testing.
