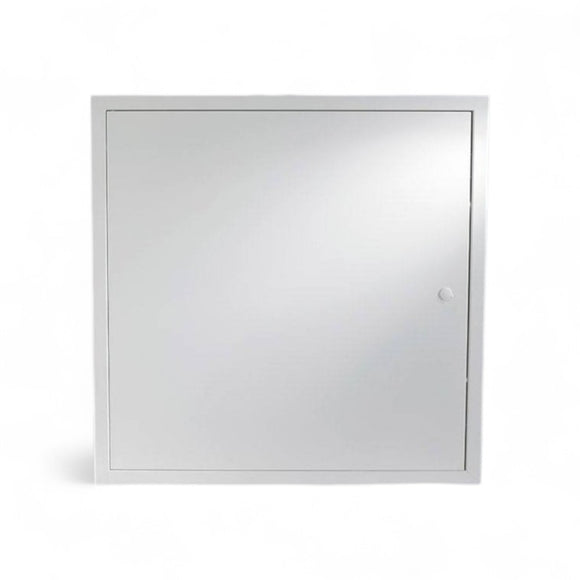

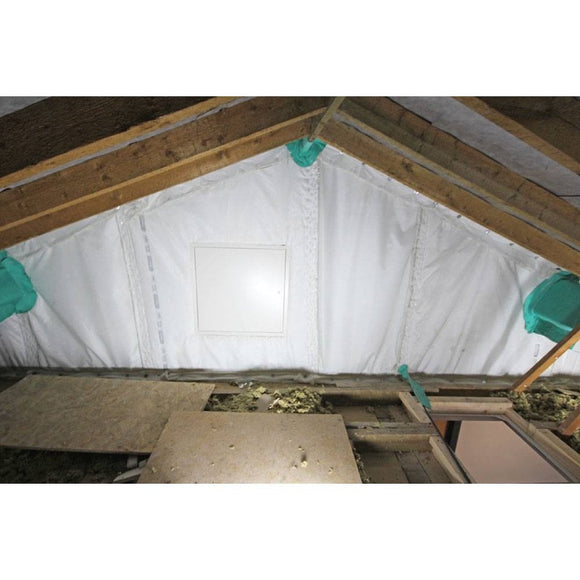

The FIREFLY® Access Panel FR120 is a third-party certified, fire-rated steel access hatch designed for integration within FIREFLY® fire barrier systems. Tested to EN 1363-1:2020, it provides up to 120 minutes of fire resistance while allowing secure, repeatable access to compartmentalised areas such as roof voids, ceiling spaces, and service risers.
Constructed from heavy-duty Zintec-coated steel, this robust panel includes an intumescent seal and a FIREFLY® fire barrier pillow fitted to the rear of the door. It features a mechanical 3-point locking system and dual lockable handles, which can be replaced with a standard turnkey closure if required. The panel is supplied as a complete kit for quick installation into a Unistrut frame.
Key Features:
-
Up to 120 minutes fire resistance tested to EN 1363-1:2020
-
Designed for use within FIREFLY® fire barrier systems
-
Constructed from Zintec-coated 1.0–1.2mm steel for durability
-
Supplied with fire barrier pillow and intumescent seal pre-installed
-
Secure 3-point locking with dual handles or optional turnkey closure
-
Complete kit for vertical installations (Unistrut and fixings not included)
-
Maintains system integrity while permitting safe maintenance access
Available Sizes and Ratings:
-
600 x 600mm – 120 minutes fire rating
-
900 x 600mm – 60 minutes fire rating
-
1200 x 600mm – 60 minutes fire rating
Material & Finish:
-
Material: Electro-galvanised Zintec steel (frame and door)
-
Finish: White RAL 9010, 30% gloss
-
Frame Width: 25mm
-
Fire Protection: FIREFLY® fire pillow and intumescent seal included
