50mm Fire-Rated Ablative Batt for Penetration Seals and Difficult Installations

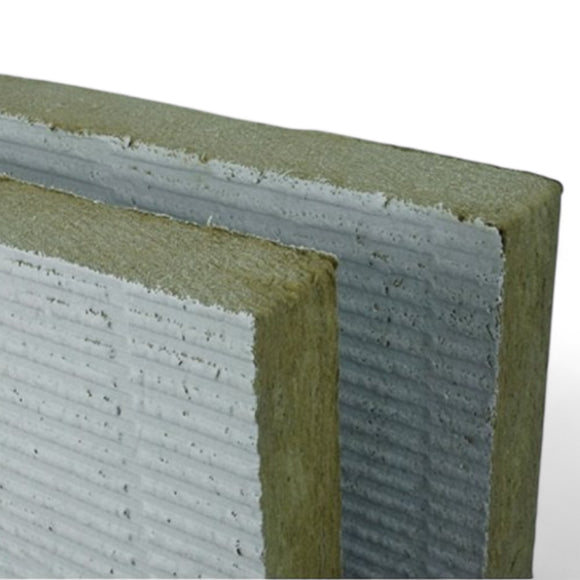

The FIREFLY® FB180 Ablative Batt – 50mm is a high-density, coated mineral fibre board designed to provide enhanced fire integrity in restricted or complex installation zones. Used in conjunction with FIREFLY® flexible fire barriers, it ensures compartmentation integrity where penetrations, I-beams, roof profiles, or tight eaves create challenges.
Constructed from layered mineral wool with an ablative coating applied to both sides, the batt is certified to BS EN 1363-1:2020 and BS EN 1366-3:2021, and is suitable for vertical and horizontal applications—including in timber roof trusses and metal platforms. With a density of 180kg/m³, the batt is robust and friction-fitted for convenient, tool-free installation.
✅ Key Features:
-
Tested to BS EN 1363-1:2020 and BS EN 1366-3:2021
-
Fire-tested as part of a FIREFLY® flexible fire barrier system
-
50mm thick with dual ablative coating for performance and durability
-
Friction-fit installation—ideal for voids with multiple service penetrations
-
Maintains system integrity around I-beams, roof profiles, and tight eaves
-
Certified for both vertical and horizontal use
-
Factory-sealed white coating, easy to handle and install on-site
🔧 Applications:
-
Closing gaps around complex shapes: roof/floor platforms, I-beams, trapezoidal roofs
-
Tight-access voids, such as between roof trusses or eaves
-
Used to create a straight edge for flexible fire barriers
-
Ideal for multi-penetration zones in restricted or service-heavy areas
🧪 Material Properties:
-
Composition: Mineral fibre batt with ablative coating (both sides)
-
Density: 180kg/m³
-
Colour: White coated faces, brown edges
-
Dimensions: 1200 × 600 × 50mm
-
Tested for fire integrity with FB180 systems
📦 Storage & Handling:
-
Supplied in a bagged format to protect in transit and on-site
-
Store dry, protected from rain, moisture, or frost
-
Not suitable for direct exposure to water
⚠️ Health & Safety:
-
Not classified as hazardous under CLP Regulation (EC) No. 1272/2008
-
May cause minor skin or respiratory irritation from dust during handling
-
Use PPE: gloves, eye protection, and mask if cutting
-
Dispose of waste in accordance with local regulations
