The Quelfire QuelStop Ablative Coated Fire Batt is a high-performance fire protection solution designed to reinstate the fire integrity of compartment walls and floors penetrated by building services. Manufactured from dense mineral wool and coated with a flexible ablative seal, it delivers robust fire resistance up to 120 minutes. Ideal for a range of substrates and service penetrations, it can also be used in blank seal and head of wall applications.
Key Features & Benefits:
-
Fire tested to BS EN 1366-3:2009, classified to EN 13501-2:2007 + A1:2009
-
Provides up to 2 hours (EI120) fire resistance for walls and floors
-
Acoustic tested to EN 10140 – up to 60dB sound reduction
-

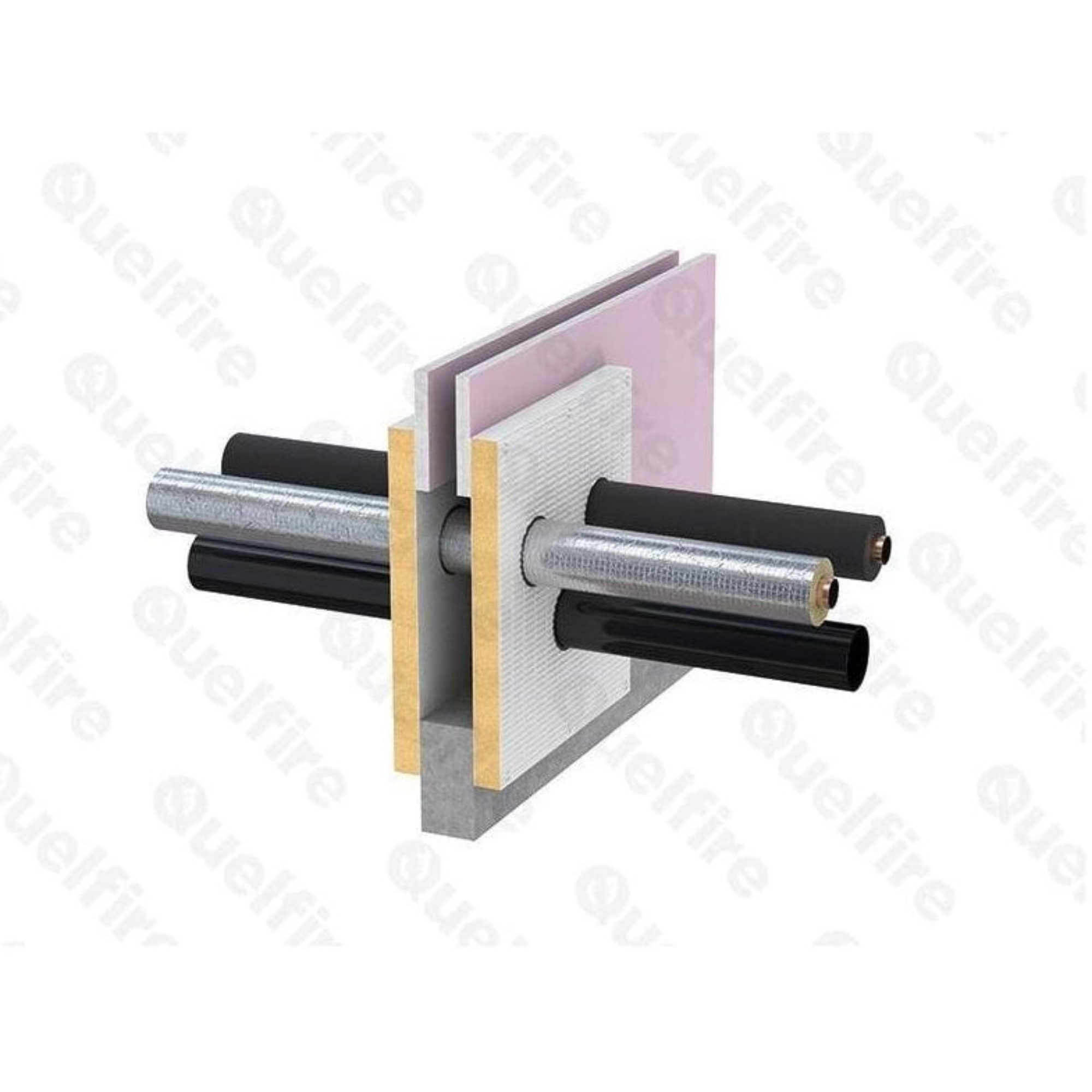

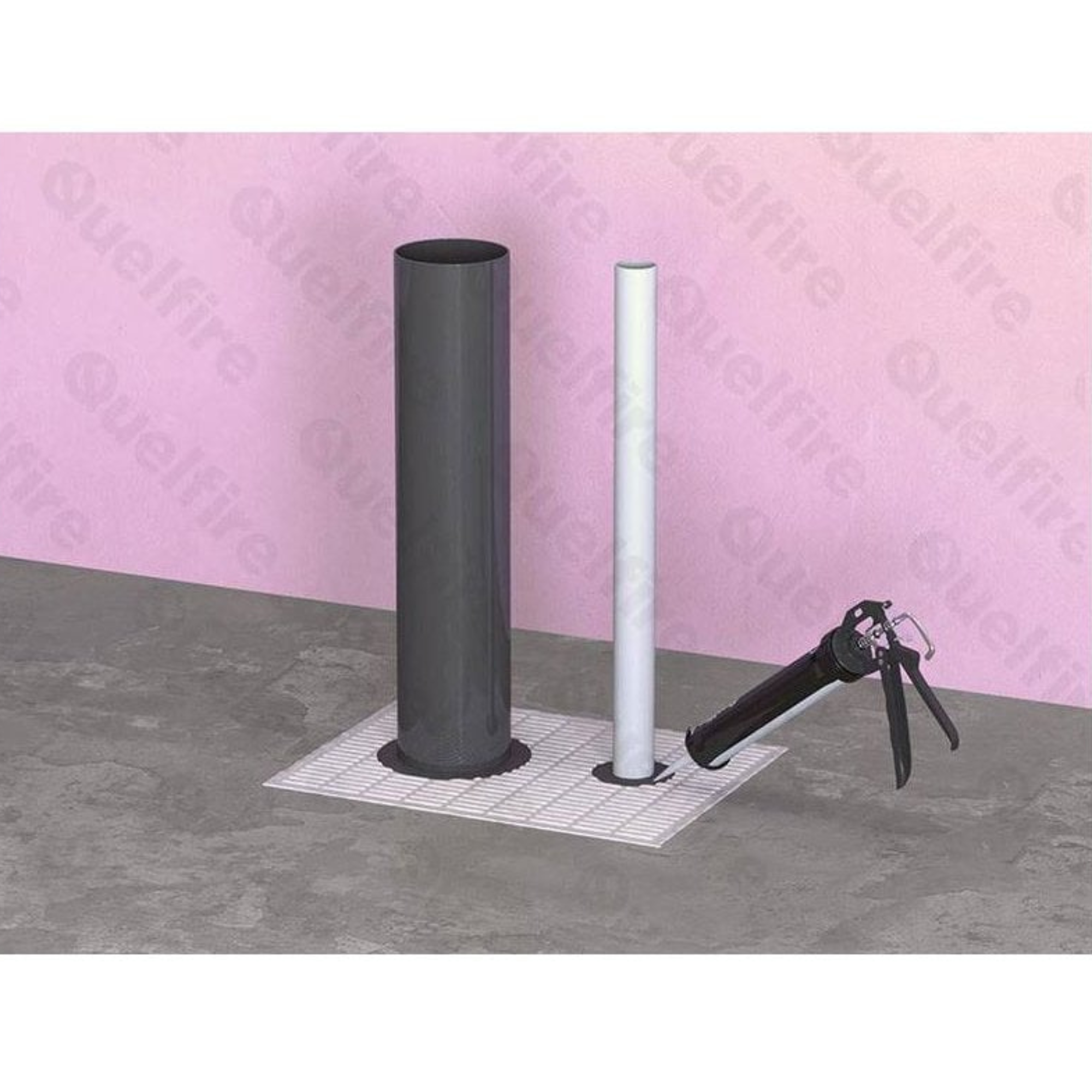

Compatible with flexible walls, rigid walls, and floor slabs
-

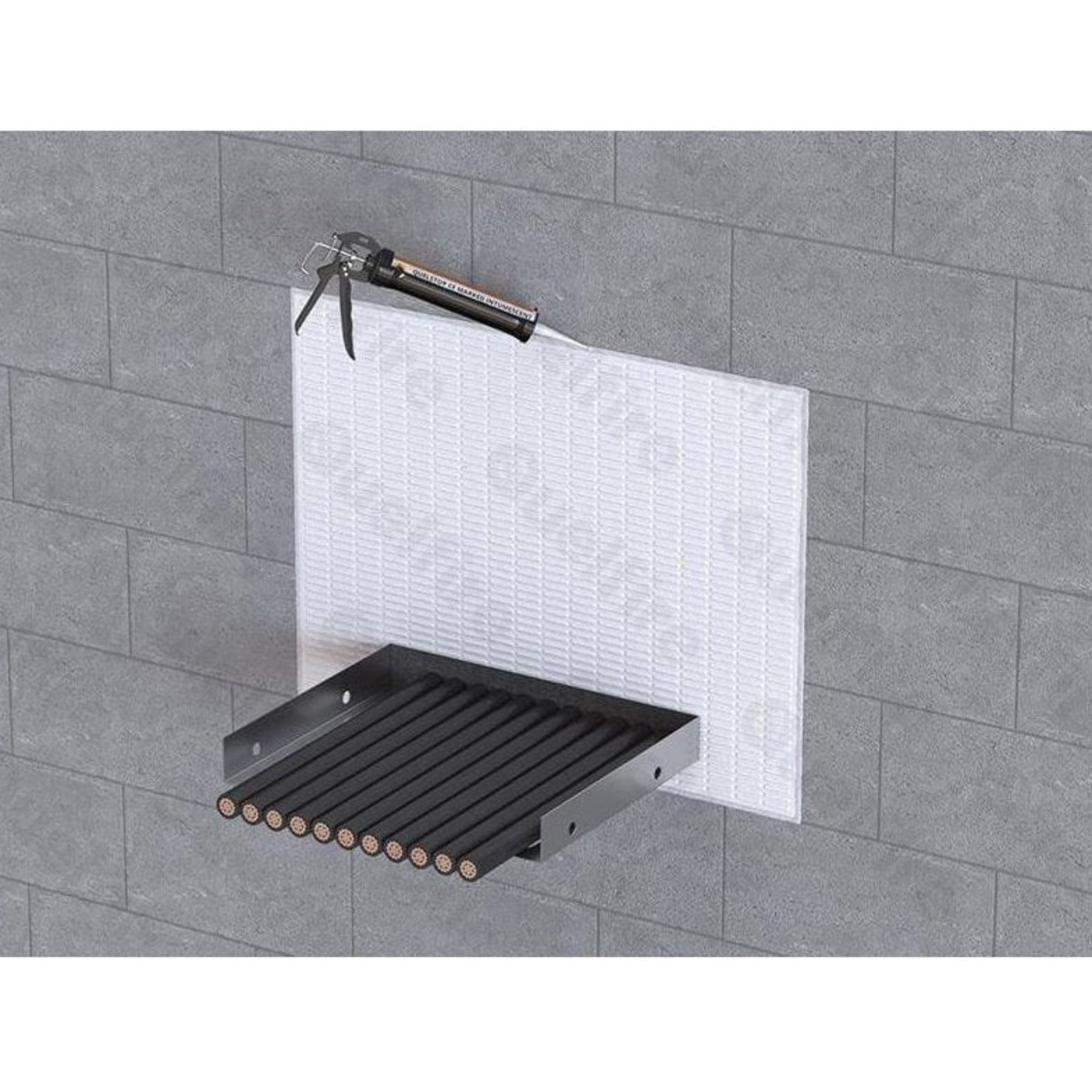

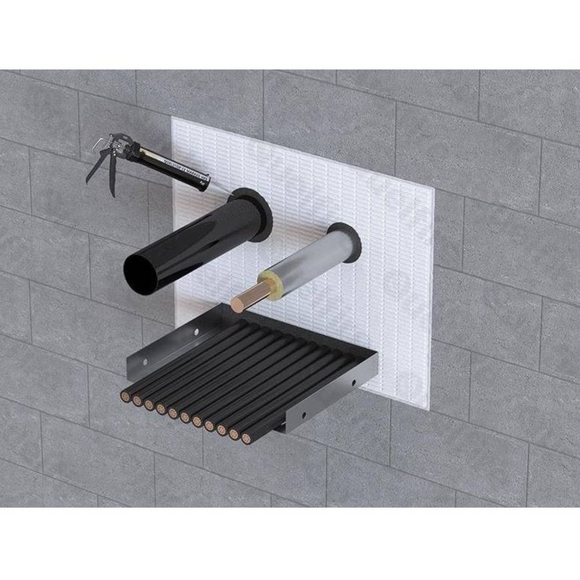

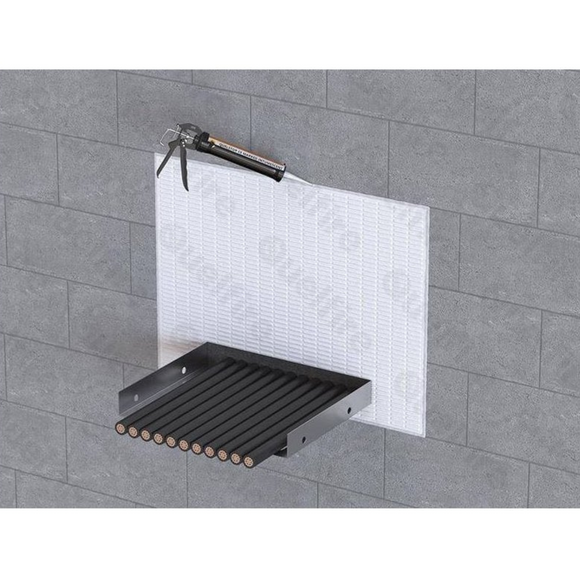

Effective around cable trays, cable ladders, bunches, and non-combustible pipes
-
Also suitable for plastic and insulated pipes (when used with additional Quelfire products)
-

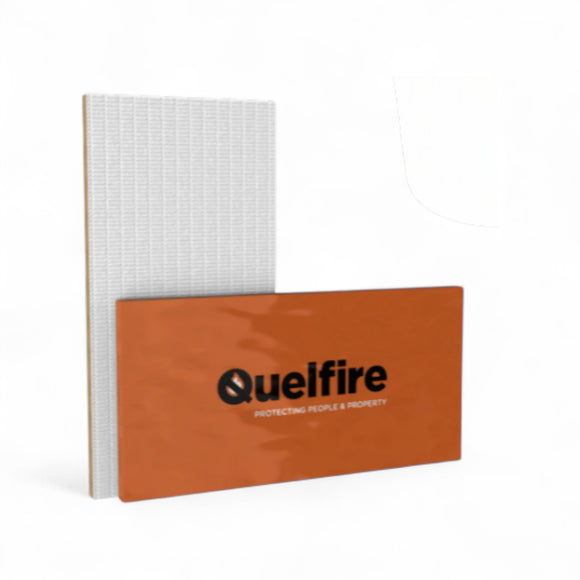

Available in 1200mm x 600mm x 50mm slabs at 140kg/m³ density
-
Easy to cut and friction fit with simple installation instructions
-

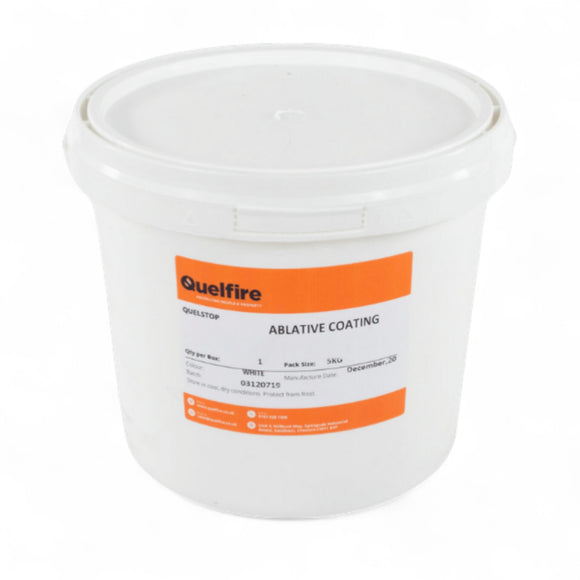

Used with QuelStop Intumescent Acrylic Sealant and Ablative Coating for a complete system
-
Safe and odourless mineral wool composition
Applications:
Designed for reinstating fire protection where multiple services penetrate fire compartment lines. Used in both new builds and refurbishments for fire stopping compliance.
Installation Notes:
Must be tightly friction fitted within the aperture. All cuts and edges should be sealed with QuelStop Intumescent Acrylic Sealant. For pattress fitting, fix with 80mm screws and 25mm washers at 300mm centres and coat fixings with QuelStop Ablative Coating.
