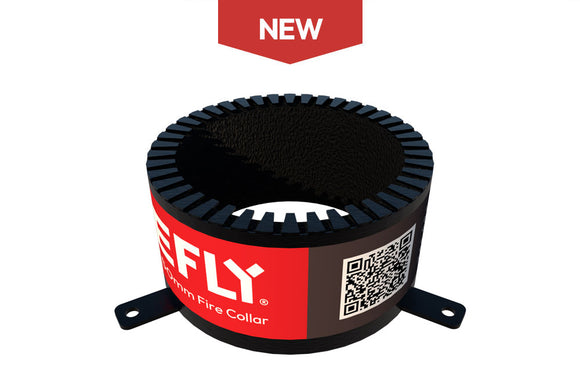

The FIREFLY® Fire Collar (FCR) is a high-performance penetration sealing device designed to maintain fire resistance where combustible pipes pass through fire-rated walls and floors. It contains FIREFLY®’s in-house manufactured flexible intumescent graphite, housed within a corrosion-resistant, powder-coated steel shell, delivering high-volume expansion and an effective pressure seal in fire conditions.
When exposed to heat, the intumescent graphite activates and expands to crush and seal combustible pipes, preventing fire and smoke spread through service penetrations. The FIREFLY® Fire Collar is tested to BS EN 1366-3:2021 and provides fire resistance of up to 4 hours, depending on application.
Designed for retrofit or new-build installations, the Fire Collar is intended for use in conjunction with FIREFLY® flexible fire barriers and the FB180 Wall and Floor Batt System, forming part of a fully tested and approved passive fire protection solution.
Key Features
-
Provides fire resistance of up to 4 hours
-
Tested to BS EN 1366-3:2021 for penetration seals
-
High-performance, fast-expanding flexible graphite
-
Corrosion-resistant, powder-coated steel casing
-
Suitable for retrofit and new-build applications
-
Easy to install as part of a FIREFLY® tested system
-
Supported by FIREFLY® ancillaries (sealants, graphite, fixings)
Typical Applications
-
Combustible pipe penetrations through fire-rated walls and floors
-
Use with FIREFLY® flexible fire barriers
-
Use with FIREFLY® FB180 Wall & Floor Batt Systems
-
Concrete and masonry walls and floors
-
Double-layer flexible fire-rated partition walls
Compatible Services
-
PVCu pipes
-
PP pipes
-
PE-X pipes
-
HDPE / LDPE pipes
-
ABS pipes
-
Air-conditioning pipes
-
Insulated copper or metal pipes (Elastomeric, Phenolic, Glasswool, Nitrile, PE)
⚠ Limitation: Not suitable for use with cPVC pipes.
Product Sizes
-
50mm
-
60mm
-
75mm
-
90mm
-
110mm
-
160mm
Dimensions
-
FCR50 – FCR110: 30mm height
-
FCR160: 40mm height
Finish / Colour
-
Black powder-coated steel
Installation Notes
-
Install where a combustible pipe penetrates a fire-rated wall or floor
-
Use in accordance with FIREFLY® installation drawings and system details
-
Must be installed as part of a tested FIREFLY® system
Additional Data
-
Storage: Store in a dry place, protected from frost
-
Application temperature: -5°C to +40°C
-
Activation temperature: Approx. 150°C
Compliance & Testing
-
Tested to BS EN 1366-3:2021
-
Fire resistance: Up to 4 hours
-
Designed for use as part of a fully tested FIREFLY® passive fire protection system
