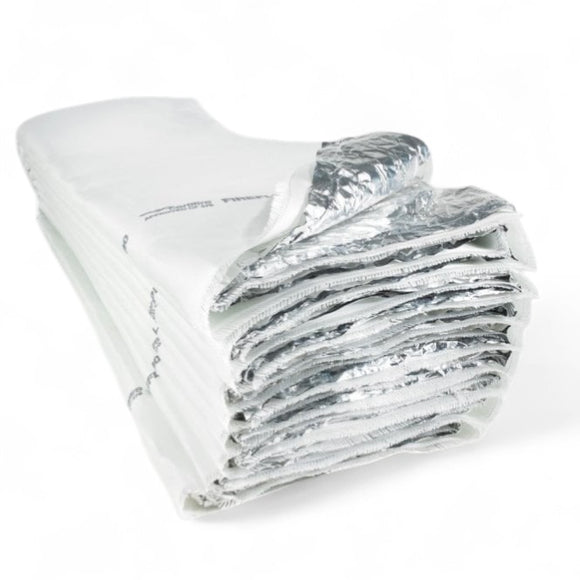

FIREFLY™ APOLLO Lite™ 30:30 is a lightweight, non-rigid fire barrier designed for horizontal installation in concealed voids such as ceilings and floor cavities. It offers 30 minutes of Integrity and 30 minutes of Insulation, meeting and exceeding the fire protection standards required under the UK Building Regulations: Approved Document B.
Constructed from specially treated woven glass fibre, the barrier features a chemical coating that enhances thermal resistance and minimises fibre migration. The product is certified under IFCC Scheme IFCC 1531 and tested to BS 476 Part 20/22 for horizontal applications, with proven performance in extensive cavity compartmentation.
Key Features:
-
Provides 30 minutes Integrity and 30 minutes Insulation
-
Certified to IFCC 1531 for horizontal fire barrier applications
-
Tested to BS 476 Part 22:1987 (horizontal orientation)
-
Passes BS 476 Parts 6 & 7 – flame propagation and surface spread
-
Lightweight, flexible and easy to install
-
Chemically treated to improve thermal properties and reduce fibre migration
Applications:
-
Horizontal fire barriers within concealed ceiling and floor voids
-
Suitable for commercial, retail, educational, and industrial buildings
-
Ideal for extensive cavities where dual fire performance is required
Technical Specifications:
-
Orientation: Horizontal
-
Material: Treated woven glass fibre
-
Minimum Thickness: 10mm
-
Width: 130cm
-
Roll Length: 6 linear metres
-
Roll Area: 7.8 m²
-
Weight: 2.2 kg/m²
-
Packaging: Concertina folded, polythene wrapped
Compliance & Testing:
-
Fire Rating: 30:30 (Integrity and Insulation)
-
Test Standards: BS 476 Part 22:1987, BS 476 Parts 6 & 7
-
Certification: IFCC 1531
