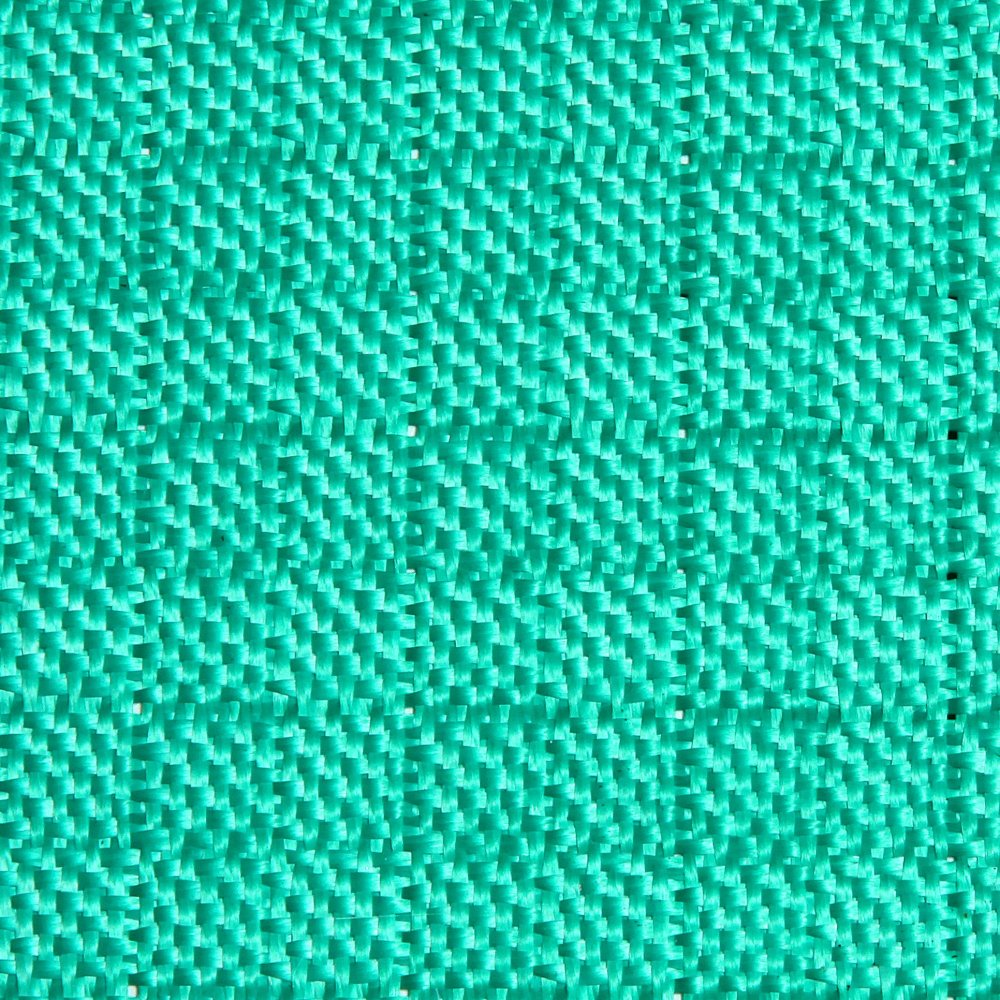

FirePro Plus Weavelocked E-Glass Cloth is a high-integrity welding protection fabric designed to resist sparks and light spatter in vertical plane applications. Ideal for use as a welding curtain or heat shield, this flexible and portable glass fibre cloth is treated with a specialist non-flammable weavelock finish for increased stability and durability.
Available in blue (840g/m²) and green (630g/m²) variants, both cloths maintain thermal resistance up to 550°C (unstressed). The weavelock finish enhances edge stability and helps prevent fraying, making it easier to handle and install on-site. Optional eyelets available for suspension or fixing.
Key Features
-
1m wide x 50m roll
-
Withstands temperatures up to 550°C (base fabric)
-
Treated on both sides with non-flammable weavelock finish
-
Lightweight, flexible, and easy to install
-
Suitable for vertical shielding, curtains, or drapes
-
Optional eyelets available on request
-
Available in blue (840g/m²) or green (630g/m²) finishes
Technical Data – Blue vs Green Weavelocked E-Glass Cloth
Property Blue Variant Green Variant Product Code WEAVECLOTH-BLUE WEAVECLOTH-GREEN Finished Fabric Weight 840 g/m² ±5% 630 g/m² ±5% Base Fabric Weight 800 g/m² ±5% 600 g/m² ±5% Thickness 0.8 mm ±5% 0.6 mm ±5% Useable Width 1000 mm ±5% 1000 mm ±5% Roll Length 50 metres 50 metres Colour / Description Blue fibres both sides Green fibres both sides Weave Pattern Square plain Square plain Construction Density (Warp/Weft) 14.5/cm warp, 14/cm weft ±5% 14/cm warp, 14/cm weft ±5% Yarn Count (Warp / Weft) EC9 136/2 Tex EC9 68/3 Tex Tensile Strength (Warp / Weft) 1140 N/cm ±10% Not specified Coating Type Blue non-flammable weavelock finish Green non-flammable weavelock finish Coating Weight 40 g/m² ±10% 30 g/m² ±10% Max Operating Temp (Base Fabric) 550°C (unstressed) 550°C (unstressed) Finish Thermal Degradation Begins above 150°C Begins above 150°C Eyelets Available Yes (on request) Yes (on request)
