Quelfire QuelCoil Continuous Intuwrap – 25m Fire Wrap for Pipes | CE Marked

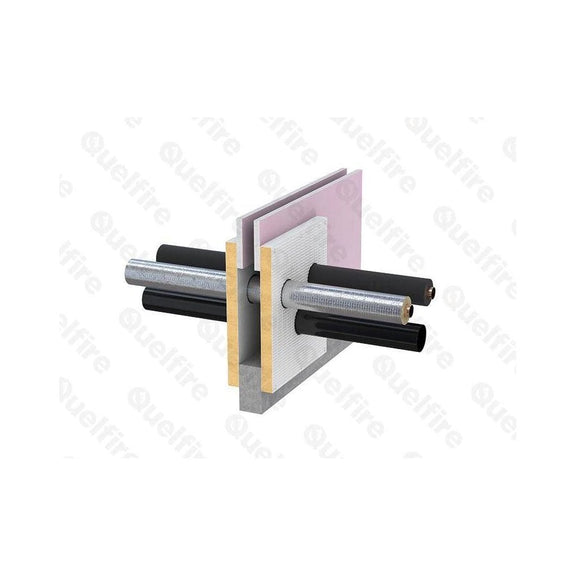

The Quelfire QuelCoil Continuous Intuwrap is a CE Marked, high-performance intumescent wrap designed to reinstate the fire resistance of walls where plastic pipes or metal pipes with combustible insulation pass through. Supplied in a 25m coil, this wrap can be easily cut to size on-site, offering a flexible and reliable firestopping solution.

Tested to BS EN 1366-3:2009 and classified to EN 13501-2:2007 + A1:2009, QuelCoil provides up to 2 hours (EI120) of fire resistance. The wrap expands under fire conditions to seal gaps left by melted plastics or combustibles, preventing the passage of fire, smoke, and gases.

Key Features & Benefits

• Up to 2-hour fire rating (EI120)

• Supplied in a 25m coil – easily cut to length on-site

• No mechanical fixings required

• For use in flexible and rigid walls

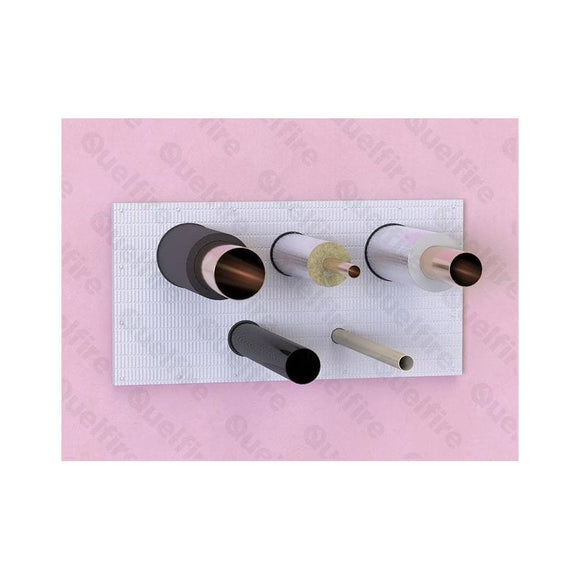

• Suitable for PVC, HDPE, PP pipes up to 160mm

• Compatible with insulated metallic pipes (up to 50mm insulation thickness)

• Install within or around QuelStop Fire Batt

• Type X Durability – unaffected by ageing or weather

• CE Marked and tested by Warringtonfire

Layering Guide (Pipe Diameters)

Applications

• Sealing pipe penetrations through fire-rated walls

• Ideal for both new builds and retrofits

• Works in conjunction with QuelStop Fire Batt

• Applicable in residential, commercial, and industrial settings

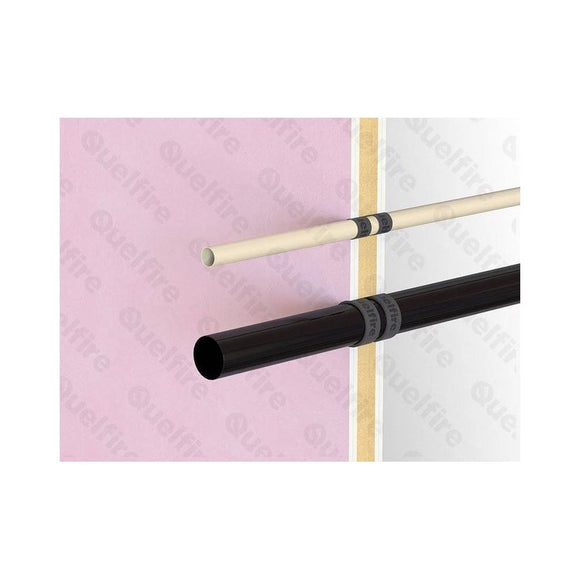

Installation Guidance

• Clean the pipe and wall surface

• Wrap the correct number of layers flush with the wall face or Fire Batt

• Use tape (supplied) to hold in place

• Install on both sides of the wall or within double-layer batt

• Intumescent expands under heat to create an effective firestop

Specifications

• Product Code: QUELCOIL

• Size: 2mm thick x 50mm wide x 25m long

• Composition: Thermoplastic sheet with graphite compound

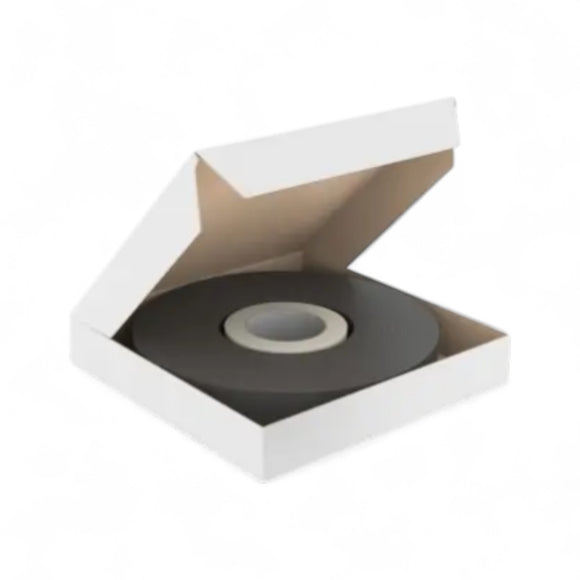

• Packaging: Supplied as a coil

• Fire Rating: Up to EI120

• Compliance: BS EN 1366-3:2009, EN 13501-2, EAD 350454-00-1104
