Clean design, high efficiency – perfect for modern indoor spaces.

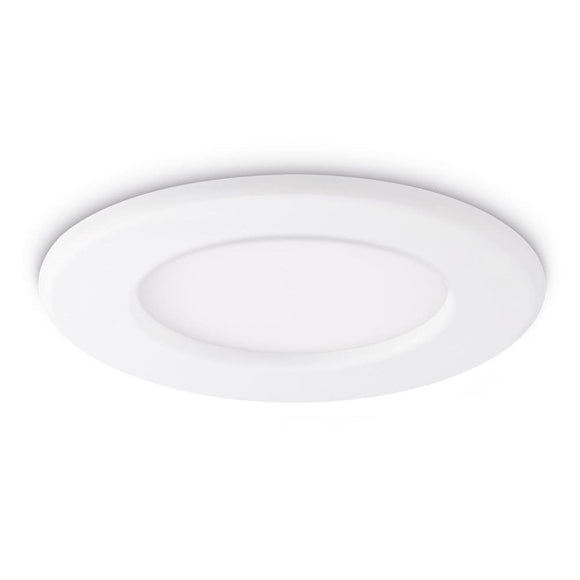

The JCC Skydisc IP20 Non-Dimmable LED Downlight range delivers bright, even illumination from a low-profile, recessed fixture. Available in 10W, 16W, and 22W outputs, these fittings are ideal for commercial and domestic interiors where space is limited but performance is critical.
Each model delivers 4000K neutral white light with a wide 120° beam angle, ensuring uniform distribution across corridors, offices, hospitality venues, and living areas. These downlights are non-dimmable, IP20 rated for dry areas, and tested to BS EN 60598:2015 standards.
Durable polycarbonate construction, tool-free spring clip installation, and Class II double insulation make this series both installer- and user-friendly.
Key Features:
-
Non-dimmable LED downlight range – 10W, 16W, 22W options
-
4000K neutral white colour temperature
-
Ultra-low profile – ideal for shallow ceilings
-
IP20 rated – suitable for dry, indoor areas only
-
120° beam angle – wide and even light spread
-
Durable polycarbonate body – lightweight and robust
-
Quick install – spring clip fitting with no earth required
-
Compliant with BS EN 60598:2015, CE & UKCA marked
-
Energy efficiency class G
-
LED lifespan: 30,000 hours (L70)
-
Warranty: 2 years, extendable to 3 on registration
Variant Comparison Table:
| Variant | Wattage | Lumen Output | Cut-out Size | Overall Diameter | Weight | Energy Class |
|---|---|---|---|---|---|---|
| 10W / 770lm | 10W | 770 lm | Ø160mm (150–160mm) | Ø170mm | 0.248 kg | G |
| 16W / 1300lm | 16W | 1300 lm | Ø210mm (200–210mm) | Ø220mm | 0.337 kg | G |
| 22W / 1750lm | 22W | 1750 lm | Ø230mm (220–230mm) | Ø240mm | 0.405 kg |
