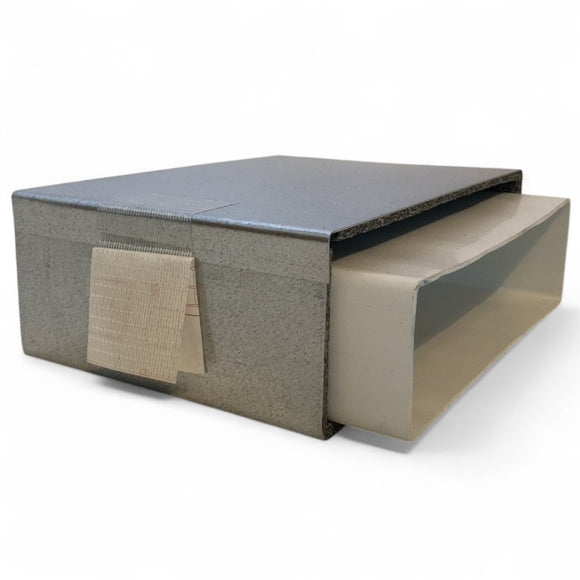

The FirePro Metal Intumescent Rectangular Fire Sleeve is a proven, compliant fire-stopping solution for thin-wall rectangular plastic ducting passing through plasterboard stud partitions or masonry walls.

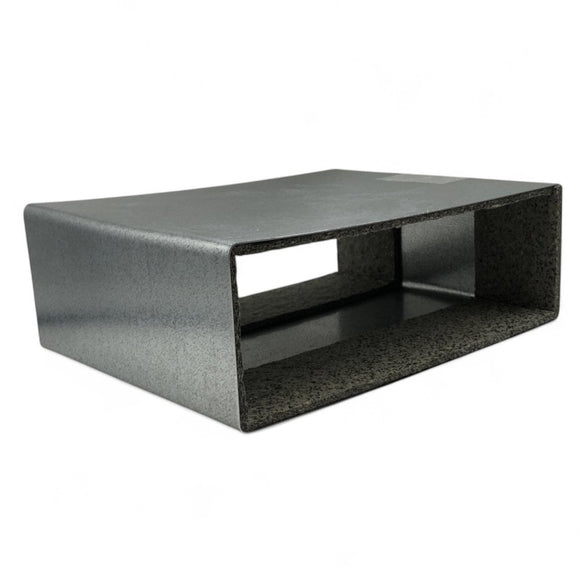

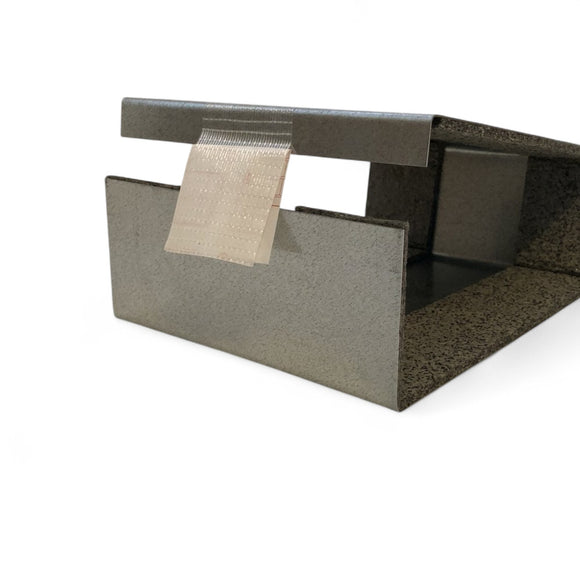

Manufactured from a graphite-based intumescent liner encased in a galvanised steel sleeve, it expands under heat to seal off the ducting, maintaining the fire integrity of the structure.
Tested to BS EN 1366-3: 2009, including uncapped/uncapped (U/U) duct configurations for ventilation systems, the FirePro sleeve achieved over 2 hours fire resistance on 100mm stud partitions and 1.5mm thin-wall ducting.
Designed for both insulated and non-insulated partitions, the sleeve requires no mechanical fixings, can be retrofitted, and is available in multiple sizes and lengths to suit common duct dimensions.
Key Benefits:
-
2+ hours fire protection – tested in accordance with BS EN 1366-3: 2009
-
Suitable for ventilation ducts – tested U/U configuration
-
Fits thin-wall rectangular plastic ducting (110x54mm, 204x60mm, 220x90mm)
-
Works in plasterboard stud partitions and masonry walls
-
Graphite-based intumescent in galvanised steel sleeve
-
No mechanical fixings required – quick and simple installation
-
Can be retrofitted to existing installations
-
Low-maintenance, cost-effective fire protection
-
Available in lengths from 110mm to 180mm
Perfect For:
-
Ventilation ducting in residential or commercial builds
-
Compliance upgrades in existing properties
-
New-build partition and wall penetrations
