FIREFLY™ Titan Lite™ 120:60 is a high-performance, non-rigid fire barrier designed for vertical compartmentation in large concealed spaces such as ceiling voids and service risers. Engineered for critical fire protection, it provides 120 minutes Integrity and 60 minutes Insulation, surpassing the minimum standards of Approved Document B of the UK Building Regulations.
This fire barrier is manufactured using specially treated woven glass fibre fabrics and chemically coated to improve thermal performance and prevent fibre migration. Despite its advanced protection, it remains lightweight, flexible and easy to install. The system is deployed in a three-layer staggered vertical configuration and is third-party certified by IFCC (Certificate No. IFCC 1463).
Key Features:
-
Certified 120 minutes Integrity and 60 minutes Insulation
-
Tested to BS 476 Parts 20/22:1987
-
IFCC Certified – Certificate No. IFCC 1463
-
Installed as a 3-layer staggered vertical system
-
Passes BS 476 Parts 6 & 7 – surface spread and flame propagation
-
Chemically treated to prevent fibre migration and improve thermal resistance
-
Lightweight and user-friendly despite multi-layer design
Applications:
-
Vertical fire compartmentation in commercial, industrial, educational and healthcare buildings
-
Large concealed spaces such as ceiling voids, riser shafts, and high-risk areas requiring prolonged fire resistance
Technical Specifications:
-
Orientation: Vertical
-
Configuration: 3-layer staggered
-
Minimum Thickness: 18mm
-
Width: 127cm
-
Roll Length: 6 metres
-
Roll Area: 7.62 m²
-
Weight: 4.2 kg/m²
-
Colour: White
-

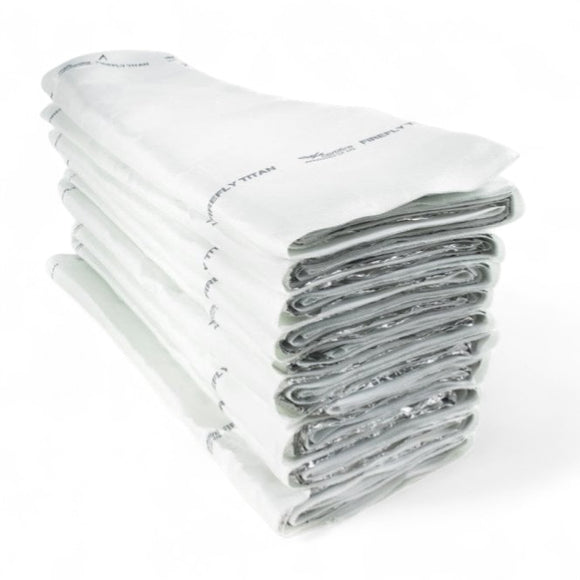

Packaging: Concertina folded and individually wrapped in polythene
Compliance & Safety:
-
Fire Tested: BS 476 Parts 20/22 (Integrity & Insulation), BS 476 Parts 6 & 7 (Flame Spread)
-
IFCC Certification: IFCC 1463
-
Material Safety: Non-hazardous, classified under EC REACH as a non-chemical article
