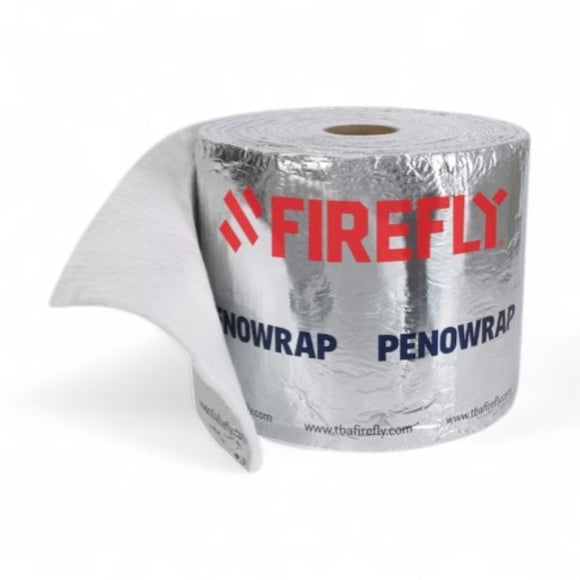

FIREFLY® Penowrap is a lightweight, flexible fire-resistant wrap designed to provide enhanced protection to exposed timber and steel elements at the head of barrier installations. When used in conjunction with a FIREFLY® fire barrier system, it achieves 60 minutes Integrity and 60 minutes Insulation, as tested to BS 476 Parts 20 & 22.
Constructed from nonwoven silica fabric with an aluminium foil facing, Penowrap is easy to handle, shape and cut for installation on-site. It is ideally suited for reinforcing vulnerable areas up to 300mm below the fire barrier, particularly where fire pressure may concentrate, such as void heads or exposed framing.
Tested to BS 476 Parts 6 & 7, Penowrap also passes flame propagation and surface spread requirements, making it fully compliant with UK Building Regulations and suitable for commercial, industrial and residential settings.
Key Features:
-
Delivers 60 minutes Integrity and 60 minutes Insulation (BS 476 Parts 20 & 22)
-
Passes BS 476 Parts 6 & 7 – flame propagation and surface spread
-
Wraps timber or steel sections up to 300mm below fire barriers
-
Non-toxic, flexible, durable construction
-
Easy to cut, shape and install on-site
-
Compatible with standard FIREFLY® fixings and high temperature adhesives
-
Lightweight for ease of handling during installation
Applications:
-
Used in conjunction with FIREFLY® barrier systems
-
Suitable for void heads, exposed framework, or structural penetrations
-
For use on timber and steel elements requiring enhanced localised fire resistance
Technical Specifications:
-
Material: Nonwoven silica with aluminium foil facing
-
Colour: White fibres with silver foil
-
Thickness: 12mm
-
Width: 300mm
-
Roll Length: 10 linear metres
-
Weight: 2.02 kg/m²
-
Fire Rating: 60:60 (Integrity and Insulation)
Storage Guidelines:
-
Store in original packaging
-
Keep in a cool, dry place away from direct sunlight
-
Avoid damage during handling or transport
